Lauren Daigle Playback Rig

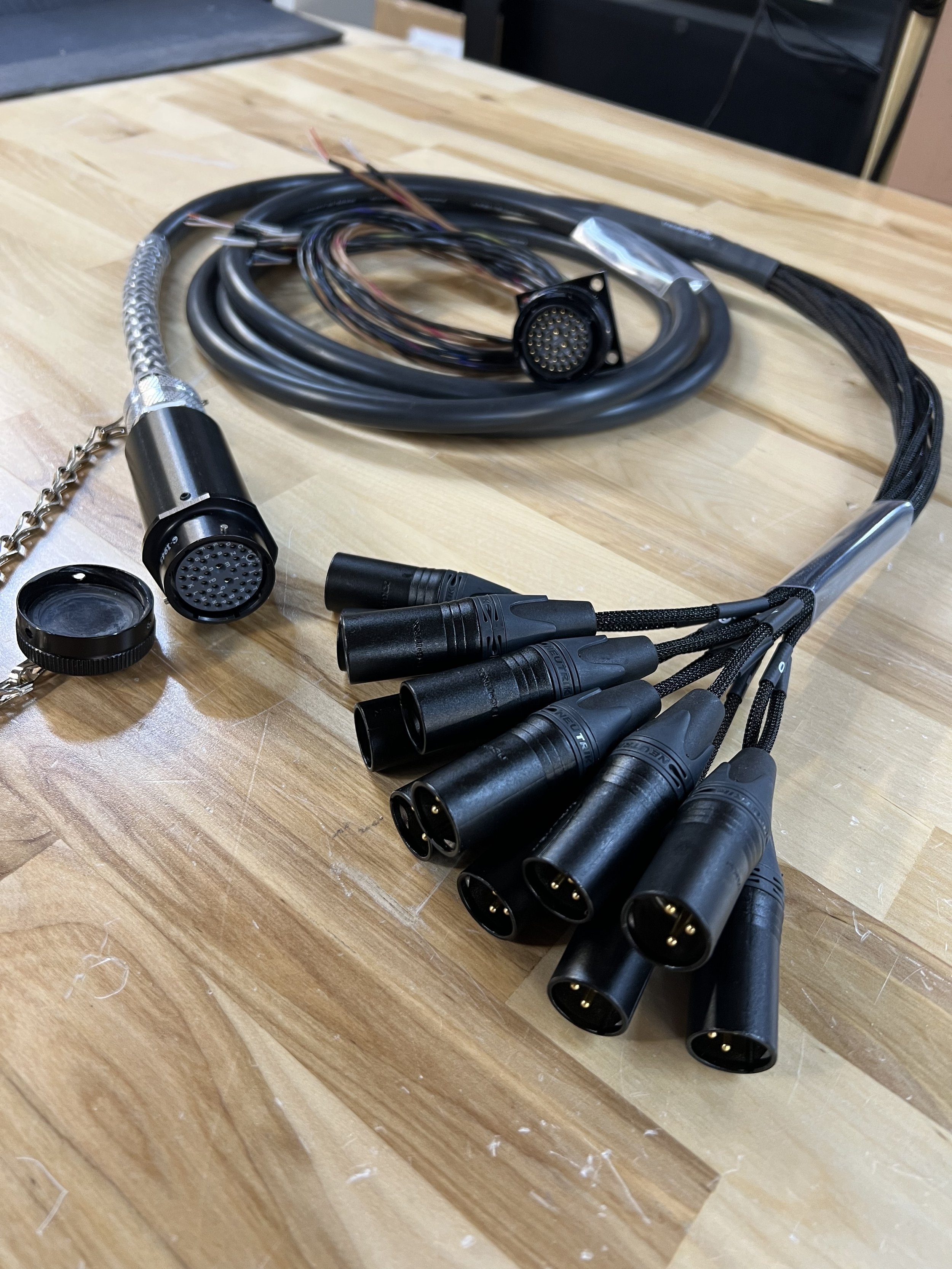

Lauren Daigle's playback has plenty of cool features, and is highly functional. It features 12 channels of redundant playback via a Whirlwind W1 multi-pin connector with a breakout cable built by Trace Audio. Plenty of MIDI functionality from the MioXM, providing 4 sets of 5-pin DIN midi, 4 RTP Ethercon midi outputs, and 4 USB "Host" ports. All audio, DIN midi and power connections are soldered in-house, with help from Trace Audio for the Whirlwind connectors! There is also built-in macbook power, availble on the back panel for quickly connecting to playback computers, and built-in power for the internal gear.

Another useful feature is the hinged panel, which allows quick access if needed to the inside of the rig.

Heatshrink was added later to the W1 connectors' dust cap (as seen in last photo).

photos by Austin Swinford
